12 Series Male JIC Ends For 4,000 PSI Hydraulic Hose
Frequently bought together:
Description

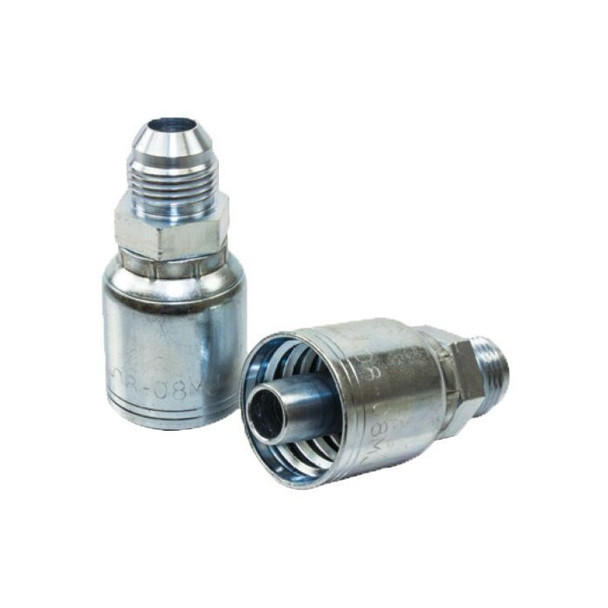

Jason 4000 PSI Male JIC (Joint Industry Council) hose ends are high-performance hydraulic fittings designed for permanent attachment to high-pressure hoses, such as the Jason Series 5192 (SAE 100R19)
Key Features and Specifications
- 37° Flare Seal: Features a 37° male seat that creates a metal-to-metal mechanical seal when mated with a female JIC flare seat.
- High Pressure Rating: Engineered to handle a constant working pressure of 4,000 PSI, making them suitable for demanding hydraulic applications.
- Standard Compliance: These fittings meet SAE J514 standards for 37° flare connections, ensuring interchangeability with other JIC-compliant components.
- Leak-Free Design: The precision-machined threads and flare angle allow for a secure, leak-free connection that can withstand high temperatures because it does not rely on an O-ring.
- Common Applications: Frequently used in heavy machinery across industries like agriculture (tractors, harvesters), construction (excavators, bulldozers), and oil and gas (drilling rigs).
Performance Benefits
- Durability: Often used with Jason's Dreamshield® covers, which offer up to 8 times more abrasion resistance than traditional materials to protect the assembly in harsh environments.
- Serviceability: JIC fittings are popular because they can be disconnected and reconnected multiple times without deforming the sealing surface.
- Crimping Precision: For safe operation, these ends should be crimped using specifications found in the Jason MyCrimp app, which provides exact diameters for various hose types.
|
Part Number |
"A" Dimension | "B" Dimension | Thread | Hex Size "H1" | Hose ID |
| 12FS0404 | 1.81" (46mm) | 1.02"(26mm) | 7/16-20 | 0.56" (14.2mm) |
1/4" (6.4mm) |
|
12FS0504 |
1.81" (46mm) | 1.02"(26mm) | 1/2-20 | 0.56" (14.2mm) | 1/4" (6.4mm) |
| 12FS0604 | 1.85" (47mm) | 1.06" (27mm) | 9/16-18 | 0.69" (17.4mm) |
1/4" (6.4mm) |
|
12FS0506 |
2.13" (54mm) | 1.06" (27mm) | 1/2-20 | 0.75" (19mm) | 3/8" (9.5mm) |
|
12FS0606 |
2.13"(54mm) | 1.06"927mm) | 9/16-18 | 0.75"(19mm) | 3/8" (9.5mm) |
|
12FS0806 |
2.24"(57mm) | 1.18"(30mm) | 3/4-16 | 0.87"(22.2mm) | 3/8"(9.5mm) |
|
12FS1006 |
2.32"(59mm) | 1.26"(32mm) | 7/8-14 | 0.94"923.8) | 3/8"(99.5mm) |
| 12FS0808 | 2.40"(61mm) | 1.18"(30mm) | 3/4-16 | 0.87"(22.2mm) |
1/2"(12.7mm) |
| 12FS1008 | 2.48"(63mm) | 1.26"(32mm) | 7/8-14 |
0.94"(23.8mm) |
1/2"(12.7mm) |
|
|
