12 SERIES END 3/8 HOSE x 1/2 Male O-Ring Face Seal

(No reviews yet) Write a Review

SKU:: 12MOFS0806
UPC:
MPN:

$10.99

Fast 1 -3 Day Shipping!

Free Returns!

Current Stock: 9

Quantity:

Frequently bought together:

Description
0 Reviews

Description

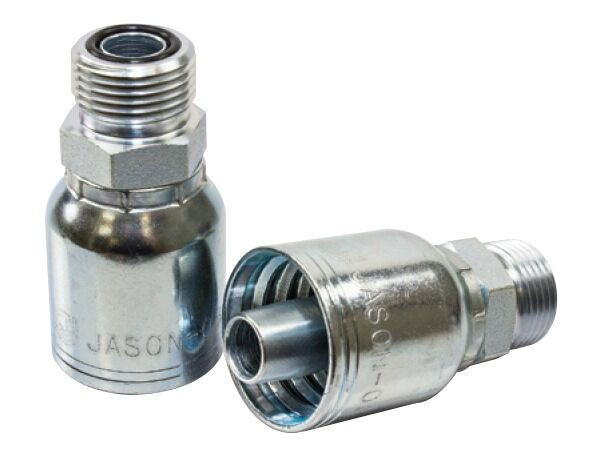

The Jason Industrial part 12MOFS0806 (Series 1232-0806) is a JB12MOFS Male O-Ring Face Seal (ORFS) hydraulic coupling. It is a specialized jump-size fitting engineered with a 3/8" hose inner diameter (ID) and a larger 1/2" nominal thread size (-08 dash size) to seamlessly transition smaller fluid lines into larger system ports.

Product Specifications

Part Number / MPN: 12MOFS0806
Series / Factory Code: 1232-0806 (JB12MOFS Series)
Hose Inner Diameter (ID): 3/8 inch (9.5 mm / -06 dash size)
Thread / Coupling Dash Size: -08 (1/2" nominal Male O-Ring Face Seal)
Thread Size Dimension: 13/16" - 16 UN

Key Features

Built-In Step Up: Allows a 3/8" hydraulic hose line to adapt directly to a 1/2" ORFS port connection, eliminating the need for bulky intermediate adapters.
Leak-Proof Flat Face: Features a precision-machined flat mating face embedded with a heavy-duty elastomer O-ring to withstand high-pressure spikes and violent vibrations without dripping.
Rugged Infrastructure: Constructed from zinc-plated, high-strength machined steel for lasting corrosion resistance and reliable performance under repetitive hydraulic impulse cycles.
