Description

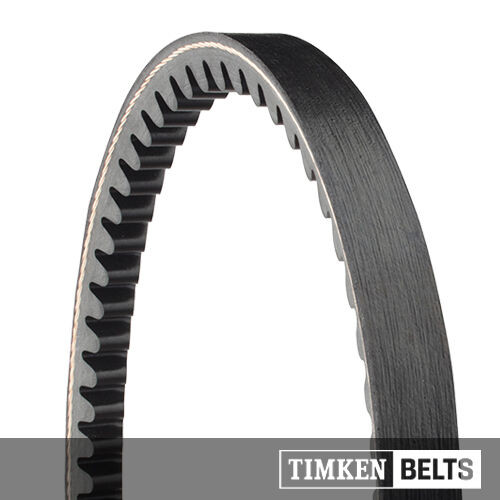

In power transmission, an AX35 is an industry-standard A-section raw-edge cogged V-belt. It is manufactured by major brands like Gates (Tri-Power series), Dayco, Browning, and Bando. The "AX" signifies its cross-section profile, while "35" represents its inner circumference length.
Key Specifications
- Industry Belt Number: AX35
- Outside Length: 37 inches (940 mm)
- Inside Length: 35 inches (889 mm)
- Top Width: 1/2 inch (13 mm)
- Thickness: 5/16 inch (8 mm)
- Material: EPDM rubber compound reinforced with high-strength polyester tensile cords
- Construction: Raw-edge cogged/notched design for enhanced flexibility and reduced bending stress.
Performance Advantages
- Energy Efficiency: The molded notches allow the belt to bend easily around smaller pulleys, reducing thermal stress and cutting energy consumption by up to 3% compared to standard wrapped belts.
- Extreme Resistance: Typically rated for high temperature thresholds (up to 250°F/121°C or more depending on the brand) with excellent resistance to oil, heat, and ozone aging.
- Static Conductive: Meets ISO 1813 standards for static conductivity to eliminate the risk of static ignition in operational environments.
Common Applications
- HVAC Systems: Air handling units, exhaust blowers, and commercial ventilation fans.
- Industrial Equipment: Lathes, milling machines, air compressors, and industrial pumps.
- Marine Components: Flat-plate boat hoist drive motor assemblies
