Description

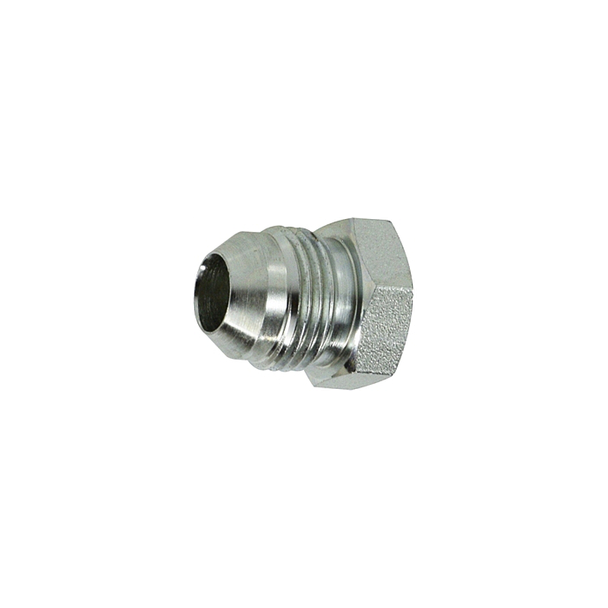

2408X05 (often formatted as 2408-05) is the standard industry part number for a 37° JIC Male Hex Head Hydraulic Plug.
It is designed to cap off and seal an open fluid line or port containing a female JIC connection. The alphanumeric designation breaks down into the following specifications: [
Model & Spec Breakdown
- 2408 / 2408X (Series): Identifies the component as a Male JIC (SAE 37° flare) Tube Plug. It features a flared nose design that seats perfectly into a matching 37-degree female cone to establish a tight mechanical seal
- 05 (Size): Indicates the hydraulic fraction size in 16ths of an inch (
5/16″):- Tube Outer Diameter (O.D.): 5/16-inch.
- Thread Size: 1/2-20 UNF straight threads.
Key Performance Features
- High-Pressure Capability: Built to handle demanding workloads, typically rated for dynamic operating pressures up to 6,000 PSI.
- Standardization: Fully compliant with SAE J514 engineering standards for historical cross-compatibility across global industrial systems.
- Interchangeability: Directly cross-references with equivalent part numbers across major industry brands, such as the Brennan 2408-05, Gates 05MJ-Plug, Aeroquip 900599-5S, and Parker 5 PNTX-S.
