Description
Key Specifications & Features
- Product Type: O-Ring Face Seal (ORFS) Swivel Run Tee
- Port Configuration:
- Port 1 (Run): Male ORFS Flat Face
- Port 2 (Run): Female ORFS Swivel Nut
- Port 3 (Branch): Male ORFS Flat Face
- Size Configuration: Dash size -12 x -12 x -12, which matches a 3/4-inch nominal tube or hose outer diameter (OD) across all three connection paths.
- Thread Details: All three ports utilize standard straight 1-3/16-12 UN/UNF threads.
- Seal Mechanism: The two male connections feature a precision flat face with a machined groove containing an elastomeric rubber O-ring. When compressed against a flat seat or the interior face of the female swivel port, the O-ring yields a tight, zero-clearance seal optimized for severe vibration environments.
- Pressure Rating: Heavy-duTy fluid power rating engineered for dynamic working pressures up to 6,000 PSI (414 bar).
- Common Materials: Forged from high-tensile carbon steel finished with an anti-corrosive trivalent zinc plating. Premium marine-grade stainless steel variations (SS-FS6602-12-12-12) are also widely available from manufacturers.
- Industry Cross-References: Equivalent industry standard numbers include SAE 520432, SAE J1453, Parker R6LO, Aeroquip FF2114T1212S, and Brennan FS6602-12-12-12.
Related Products
Related Products

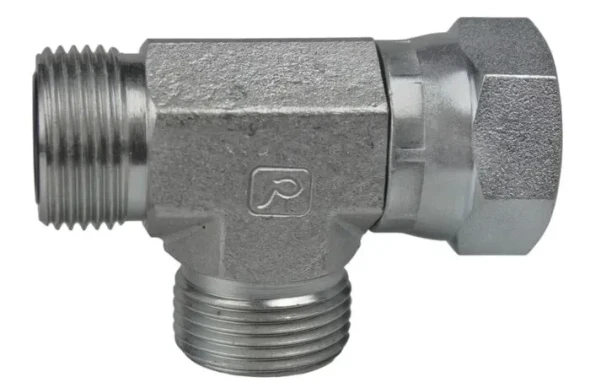

HYDRAULIC RUN TEE 1/4"OFS
Jason Industrial
$6.99
Key Specifications & Features
FS6602X040404
- SKU:
- FS6602X040404
- Weight:
- 0.00 Ounces
HYDRAULIC RUN TEE 3/8"OFS
Jason Industrial
$10.49
Key Specifications & Features
FS6602X060606
- SKU:
- FS6602X060606
- Weight:
- 0.00 Ounces
HYDRAULIC RUN TEE 1/2"OFS
Jason Industrial
$10.49
Key Specifications & Features
FS6602X080808
- SKU:
- FS6602X080808
- Weight:
- 0.00 Ounces

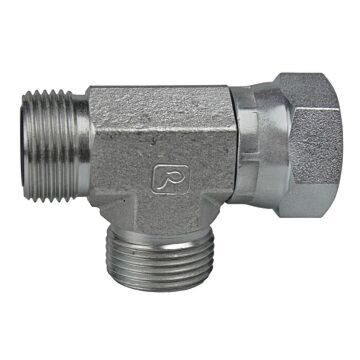

HYDRAULIC RUN TEE 5/8"OFS
