Description
Key Specifications & Features

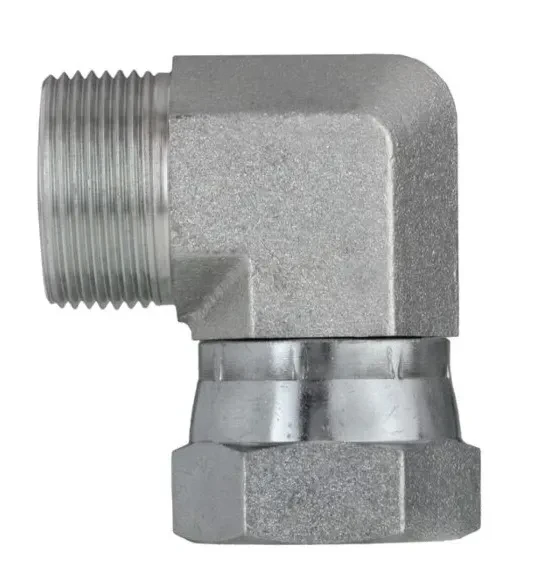

- Product Type: 90° ORFS Male × ORFS Female Swivel Elbow
- Size Configuration: Dash size -06 x -06, representing a 3/8-inch nominal tube or hose connection on both ends.
- Thread Details: Both sides utilize straight 11/16-16 UN/UNF threads.
- Seal Mechanism:
- Male end: Features a flat face with an integrated elastomeric groove containing a rubber O-ring.
- Female swivel end: Features a smooth flat surface wrapped in a free-spinning nut that compresses against the male O-ring to form a tight, leak-free, metal-to-rubber seal.
- Pressure Rating: Engineered for high-pressure systems, typically rated for a dynamic working pressure of up to 6,000 PSI (414 bar).
- Materials & Build: Forged from high-strength carbon steel finished with an anti-corrosive trivalent zinc plating. Stainless steel iterations (SS-FS6500-06-06) are also produced for marine and corrosive chemical duties.
- Industry Cross-References: Equivalent industry identifiers include SAE 520221, Parker C6LO, Aeroquip FF2098T0606S, and Brennan FS6500-06-06.
