Description
Key Specifications & Features

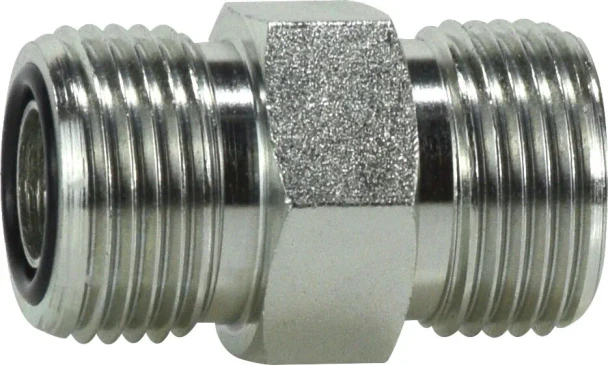

- Product Type: Straight ORFS Tube Union (Male × Male)
- Port Configuration: Male O-Ring Face Seal on both ends.
- Size Configuration: Dash size -06 x -06, which matches a 3/8-inch nominal tube or hose outer diameter (OD) for both connections.
- Thread Details: Both sides utilize standard straight 11/16-16 UN/UNF threads.
- Seal Mechanism: Each male side features a precision-machined flat face containing a groove with an elastomeric O-ring (typically 90 Durometer Buna-N). When mated against a female flat-face swivel nut, the O-ring compresses to create a leak-proof, zero-clearance seal optimized for high-vibration systems.
- Pressure Rating: Engineered for heavy-duty industrial systems, typically rated for a maximum dynamic working pressure of 6,000 PSI (414 bar) up to 9,200 PSI (634 bar) depending on the brand and material grade.
- Common Materials: Forged from high-pressure carbon steel treated with a trivalent zinc anti-corrosion coating. Premium stainless steel versions (SS-FS2403-06-06) are available for chemical, marine, or coastal applications.
- Industry Cross-References: Equivalent industry identifiers include SAE 520101, SAE J1453, Parker HLO / 1HLO, Aeroquip FF2144T0606S, and Brennan FS2403-06-06.
