Description
Key Specifications
- Port 1 Connection: 1/4" Female NPSM Swivel (1/4-18 NPSM Thread Size)
- Port 2 Connection: 1/4" Female NPSM Swivel (1/4-18 NPSM Thread Size)
- Port 3 (Branch) Connection: 1/4" Female NPSM Swivel (1/4-18 NPSM Thread Size)
- Sealing Method: 30° internal chamfer/cone seat. It mates with a male NPTF/NPT pipe end that has a matching 30° seat, creating a reliable metal-to-metal mechanical seal without the need for thread sealant or PTFE tape.
- Common Material: Typically manufactured from forged carbon steel with a zinc-trivalent plating for corrosion protection.
Common Applications

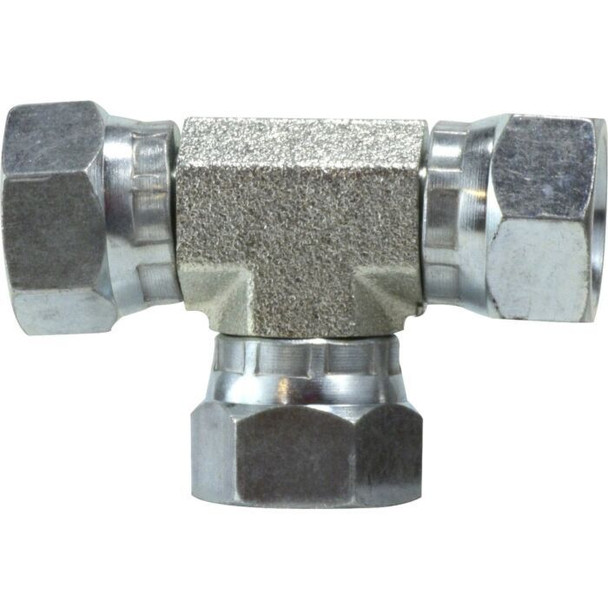

This 1/4" swivel tee is used in tight spaces within fluid systems to branch or merge multiple hydraulic, grease, or lubrication lines. Because NPSM straight threads utilize an independent swivel nut rather than tapered threads, you can securely anchor and position this tee between three lines without twisting the lines themselves or compromising the integrity of the plumbing.
