Description

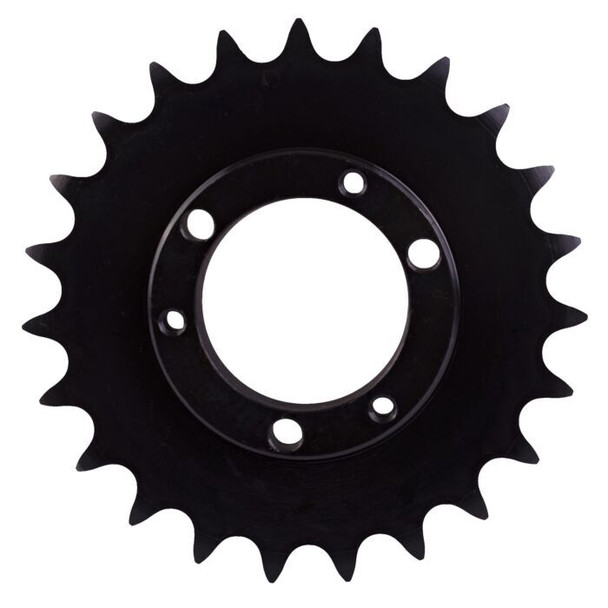

The 60SK26H is a single-strand roller chain sprocket with 26 teeth, a 3/4-inch pitch, and an SK QD (Quick Disconnect) bushed bore. Designed to work with standard ANSI size 60 roller chain, this sprocket is manufactured with induction-hardened teeth to maximize resistance to wear and tear under high-torque conditions.
Key Specs
- Chain Size: ANSI 60
- Teeth Count: 26
- Pitch Size: 3/4 inch (0.750")
- Pitch Diameter: 6.222 inches
- Outside Diameter: 6.627 inches
- Bushing Type Required: SK Quick Detachable (QD)
- Bore Capacity Range: 1/2 inch to 2-5/8 inches (depending on the chosen SK bushing)
Design and Use
- Hardened Teeth: The "H" suffix confirms heat-treated teeth, which Martin Sprocket recommends for drives with high speed ratios or harsh operating conditions.
- QD Style Component: Built as a Type B hub configuration (hub on one side). It fastens to an interchangeable SK bushing via three mounting screws positioned at 120 degrees.
- Surface Protection: Most standard models, including those from Tritan and Surplus Center, feature a black oxide finish to defend against rust.
- Common Applications: Used extensively across industrial setups, aggregate handling, forestry machinery, and agricultural conveyor systems where heavy power transmission is mandatory.
