Description
-

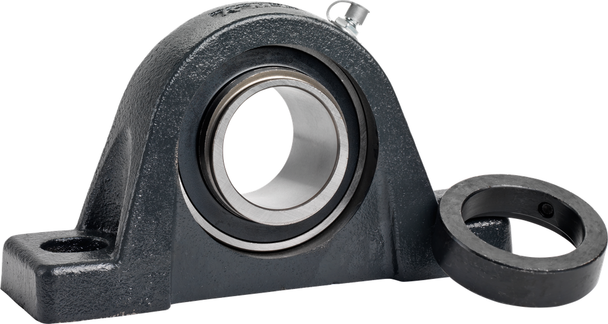

The HCPE21030KML (commonly formatted as HCPE210-30) is a KML brand 1-7/8 inch bore, normal-duty cast iron pillow block mounted bearing unit. It integrates a rugged two-bolt housing with a premium wide inner ring ball bearing insert that locks onto the shaft using an eccentric locking collar.Key Specifications
- Bore Diameter (Shaft Size): 1-7/8 in (1.875 in / 47.625 mm)
- Shaft Height (Base to Center): 2-1/4 in
- Housing Length: 8-1/8 in
- Bolt Hole Center-to-Center: 6-1/4 in
- Housing Type: Two-bolt solid-base cast iron pillow block
- Locking Device: Eccentric cam locking collar
- Bearing Insert: HC210-30 series wide inner ring insert
- Brand: KML Bearing USA
Design & Performance- High-Vibration Grip: The eccentric locking collar mechanical design provides a secure, tight grip around the shaft without damaging it. It is ideal for high-vibration machinery and single-direction shaft rotations.
- Vibration Dampening Housing: Constructed from rugged solid-base cast iron to provide high rigidity, handle demanding structural loads, and effectively dampen machine vibration
- Self-Aligning Insert: Features a precision-ground insert with a spherical outer diameter that can swivel within the housing to automatically compensate for minor shaft misalignments.
- Maintenance & Sealing: Outfitted with heavy-duty contact rubber seals and a metal slinger layout to block fine dust, water, and debris. Includes a built-in grease groove and zerk fitting for straightforward re-lubrication.
Common Applications- Bulk material handling, aggregate, and industrial conveyor lines
- Agricultural implements, harvesting machinery, and forestry gear
- Heavy-duty industrial fans, blowers, and HVAC units
- Processing machinery, gearboxes, and power transmission drive assemblies
