Description

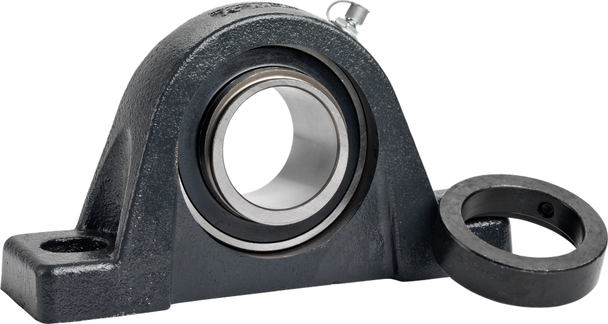

The HCPE206-18 KML is a standard-duty, cast-iron pillow block ball bearing unit featuring a 1-1/8 inch bore. It pairs a standard-height, 2-bolt pillow block housing with an eccentric cam locking insert bearing, optimized for applications where the shaft rotates in a single direction.
Key Specifications
- Bore Diameter: 1-1/8 inches (28.575 mm).
- Housing Style: HCPE series (2-bolt base pillow block with reinforced bolt-hole ears).
- Locking Mechanism: Eccentric collar (cam lock) which grips the shaft securely as it tightens in the direction of rotation.
- Housing Material: Durable, solid-base cast iron.
- Bearing Insert: HC206-18 wide inner ring ball bearing featuring a spherical outer diameter to handle minor shaft misalignments.
- Lubrication: Re-greasable housing equipped with an accessible grease fitting.
Common Applications
- Agricultural implements and harvesting equipment
- Conveyor lines and material handling drives
- Packaging and industrial machinery
